| Specification Category | Detailed Specifications |
| Battery Type | LiFePO4 |
| Battery Capacity | 4992Wh (48V 104Ah) |
| AC Rated Power | 2200W |
| AC Peak Power | 4000W |
| Cycle Life | 3500 times |

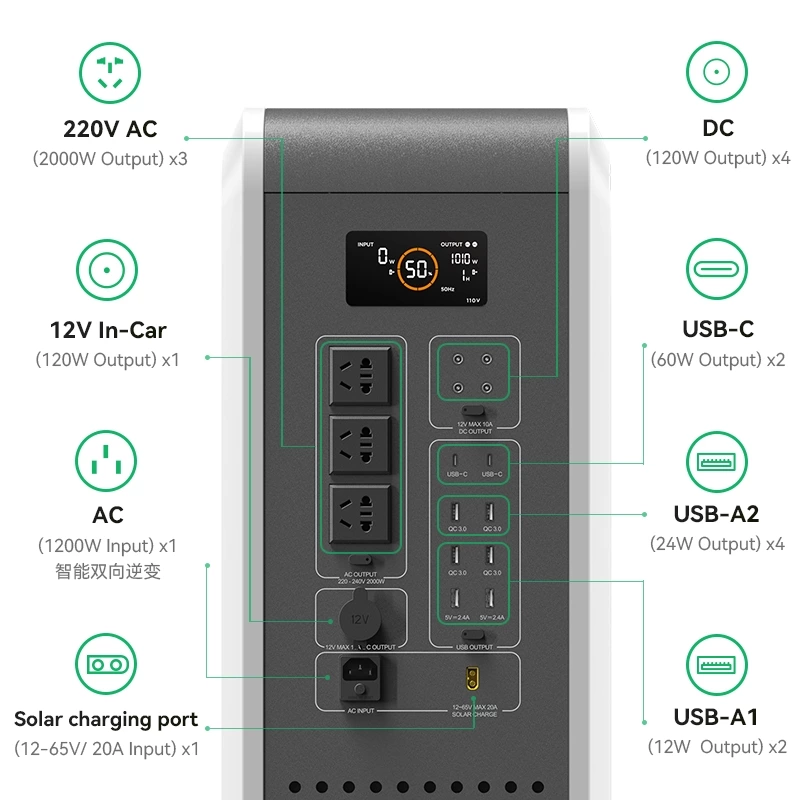

| USB-A | 2×5V/2.4A (12W) |
| USB-A (QC3.0) | 4×24W |
| Type-C | PD&QC3.0 (60W) |
| DC Output | 4×13V/10A (130W Max) |
| CIG Output | 12V/10A (120W Max) |
| AC Output | 100-240V Pure Sine Wave |

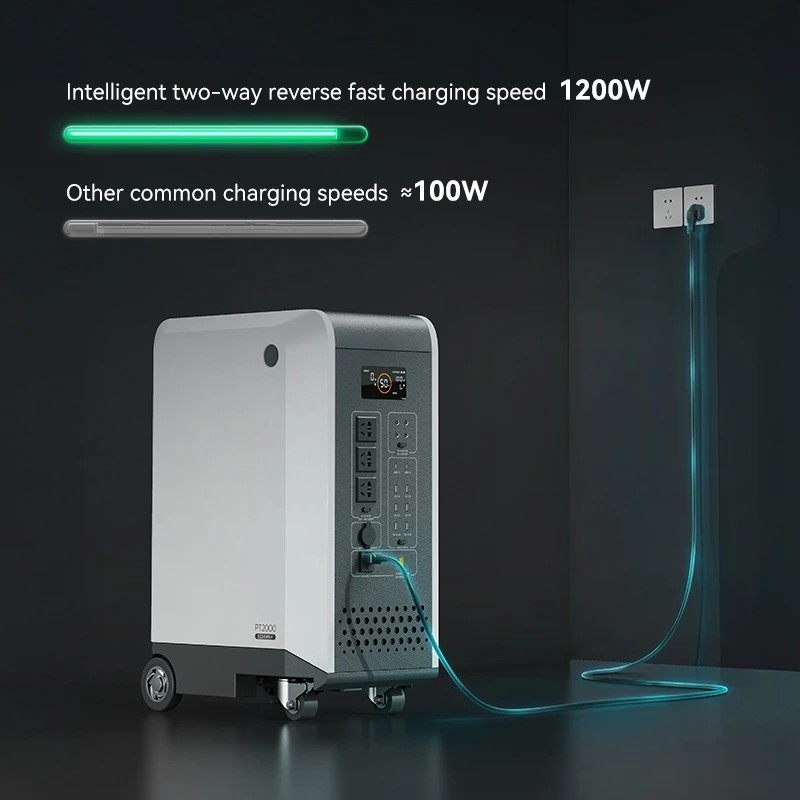

| AC Input | 1200W Max |
| Solar Input | 500W (XT60 12-65V 20A) |
| UPS | ≤15ms |
| Weight | 66kg |
| Size | 505×278×652mm |
| Charging Temp | 0℃~40℃ |
| Discharge Temp | -10℃~40℃ |
The PT3600 All-in-One Energy Storage System is designed for advanced home energy management, offering scalable capacity, high efficiency, and reliable backup power in a single integrated solution.
Scalable Energy Architecture: Modular design enables flexible capacity expansion, allowing users to customize energy storage based on evolving household or commercial requirements.
Intelligent Power Distribution System: Engineered to manage multiple outputs efficiently, ensuring balanced and stable energy delivery across connected devices in complex usage scenarios.
Advanced Thermal & Safety Design: Utilizes high-grade battery materials and system-level protection to maintain operational stability under demanding conditions and extended usage cycles.
High-Density System Integration: Combines inverter, battery, and control system into a unified structure, simplifying installation and improving overall system efficiency.
Reliable Multi-Scenario Performance: Suitable for daily energy use, emergency backup, and off-grid applications, delivering consistent and dependable power across various environments.
Comprehensive Service Support: Offers full lifecycle after-sales service including technical support, maintenance solutions, and logistics coverage for enhanced user confidence.
