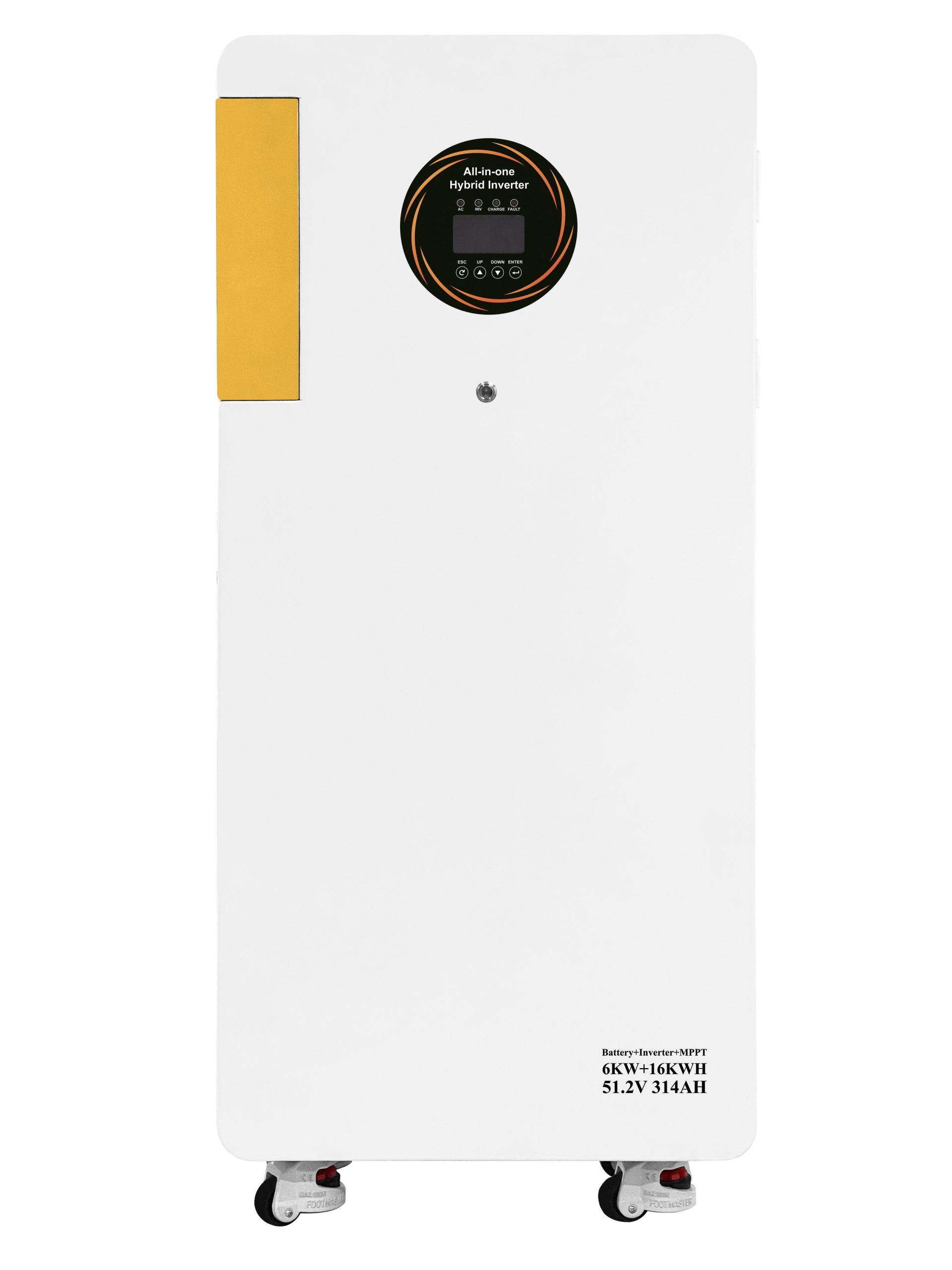

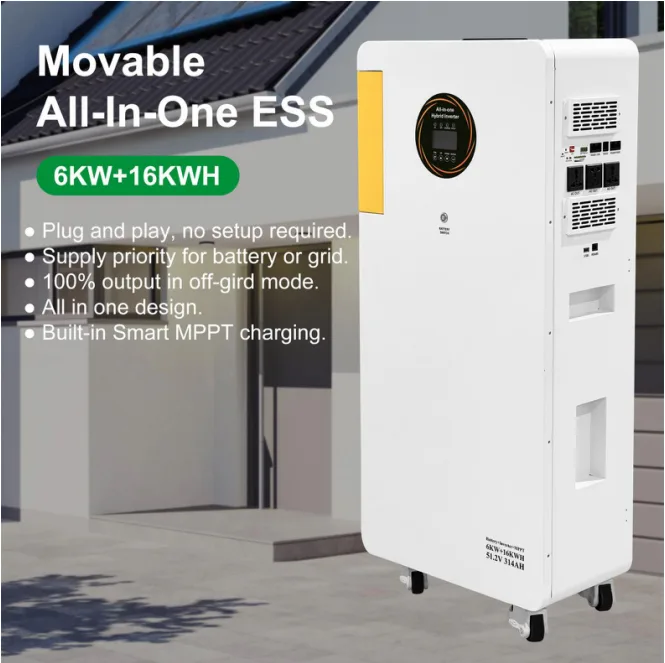

6kW + 16kWh All-in-One Battery Inverter System (Built-in)
-
Rated Capacity: 16kWh
-
Single Cell Capacity: 314Ah
-
System Configuration: 16S
-
Rated Current: 120A
-
Weight: Approx. 124 kg
-
Dimensions: 1050*460*240 mm
-
Enclosure Protection: IP54 (Dust & Water Resistant)
-

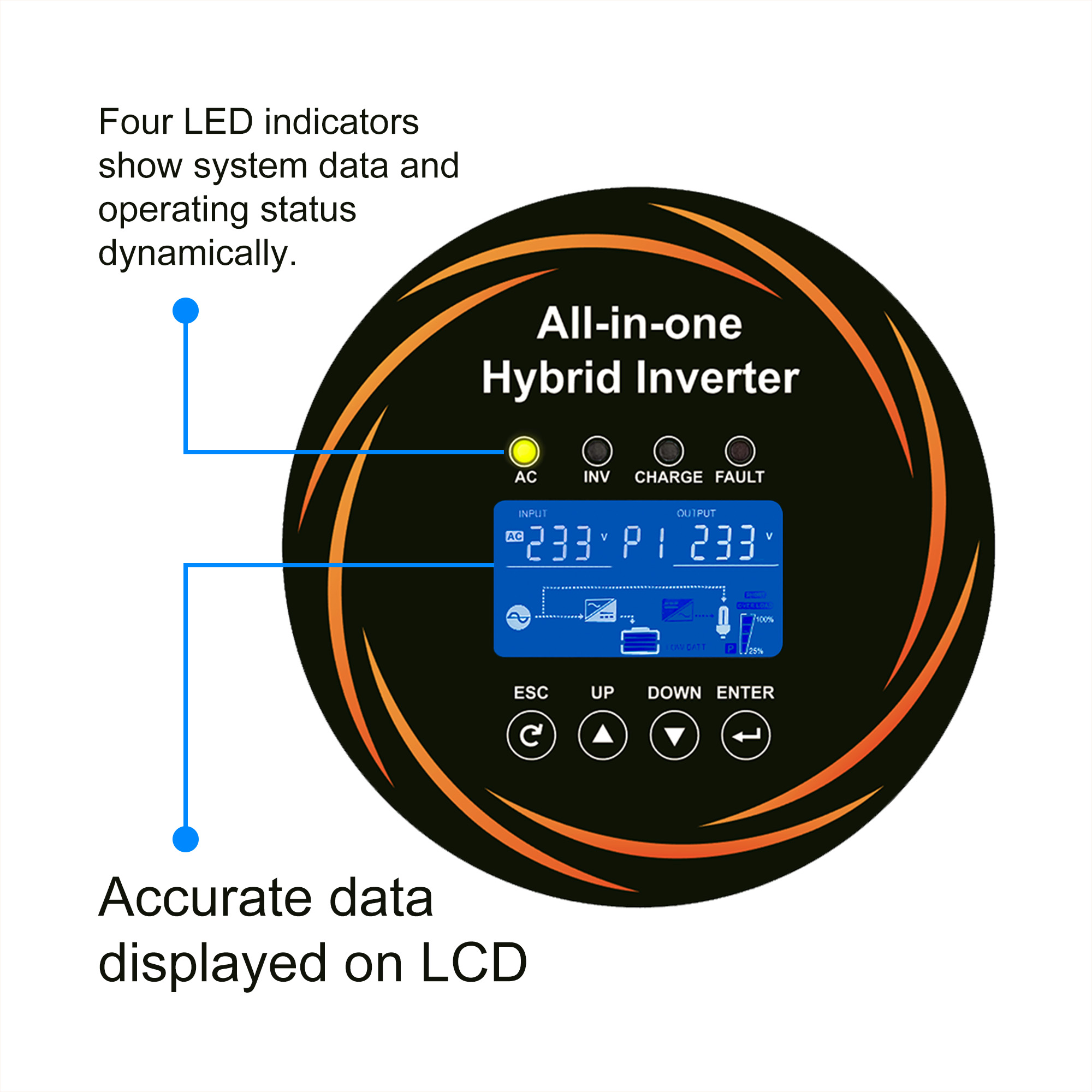

Display: System Status Information Screen
-
Solar Inverter Power: PH 6kW
-
Low Voltage Disconnect: Yes
-

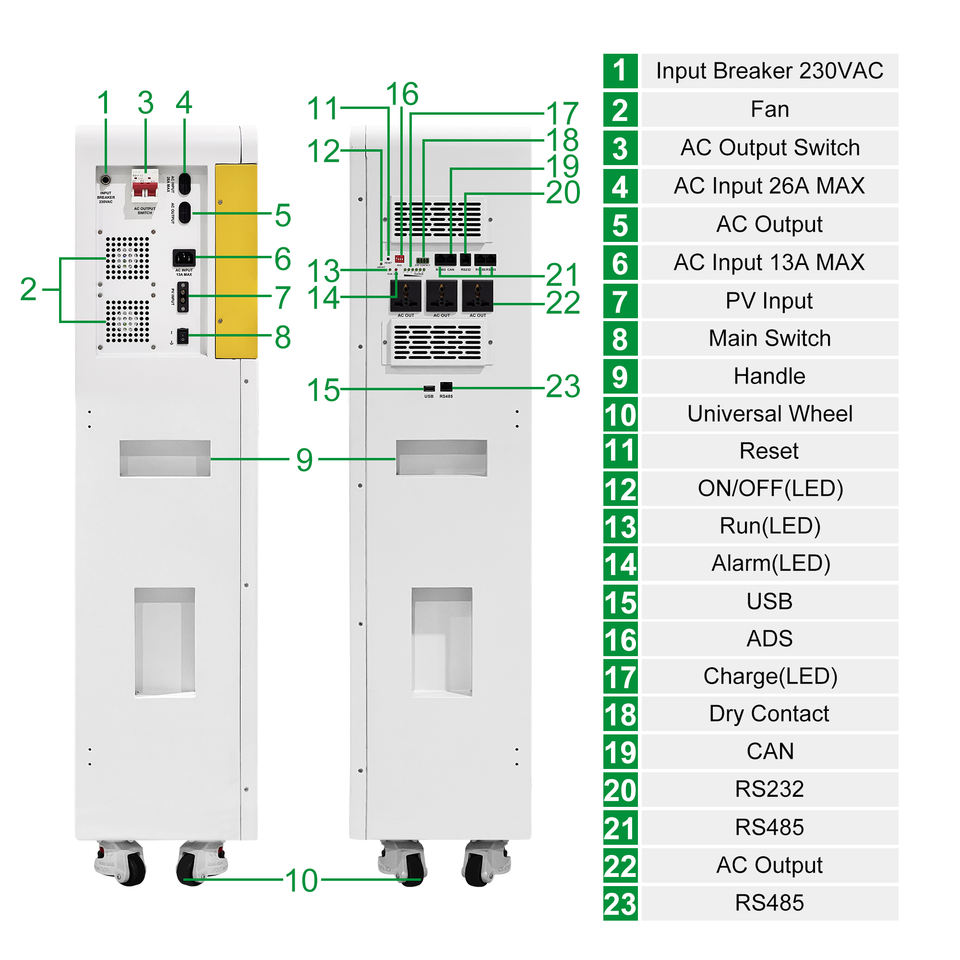

DC Switch: Yes (Integrated)
-
PV Input: PV1 (Solar)
-
AC Input: AC230V / 50Hz/60Hz
-
AC Output: AC220V-240V / 50Hz/60Hz
-
Accessory Base: Included
Technical Specifications：
Category Parameter Technical Data / Value System Basics Model PH 6KW Battery Type Lithium Iron Phosphate (LiFePO4) Rated Energy Capacity 16kWh (16000Wh) Battery Details Nominal Voltage 51.2V Voltage Range 44V ~ 56.4V Depth of Discharge (DOD) 75% AC Output (Inverter) Rated Output Power 6000W / 6kVA Peak Power (Surge) 9000VA Rated Output Voltage 220/240VAC ± 5% Rated AC Frequency 50/60 Hz Transfer Time 10ms (PC Load) / 20ms (Home Appliance) PV Input (Solar) Number of MPPT Trackers 1 Max. PV Array Power 9000W Max. Input Current 27A Max. Open Circuit Voltage (Voc) 500VDC MPPT Operating Voltage Range 60VDC ~ 450VDC AC Input (Grid) Input Voltage Range 170-280VAC (PC Mode) / 90-280VAC (Appliance Mode) Frequency Range 50/60 Hz (Auto Detection) Bypass Overload Current 40A Physical & Environment Dimensions (LWH) 1050 * 460 * 240 mm Weight (Net) 122 kg Enclosure Protection Rating IP21 Operating Temperature Range -10°C to 55°C (Operation) / -15°C to 60°C (Storage) Noise Level ≤ 60 dB Cooling Method Intelligent Fan Cooling Communication & Expansion Communication Ports RS232 / RS485 / Dry Contact Optional Modules WiFi Module / Lithium Battery BMS Communication Card
