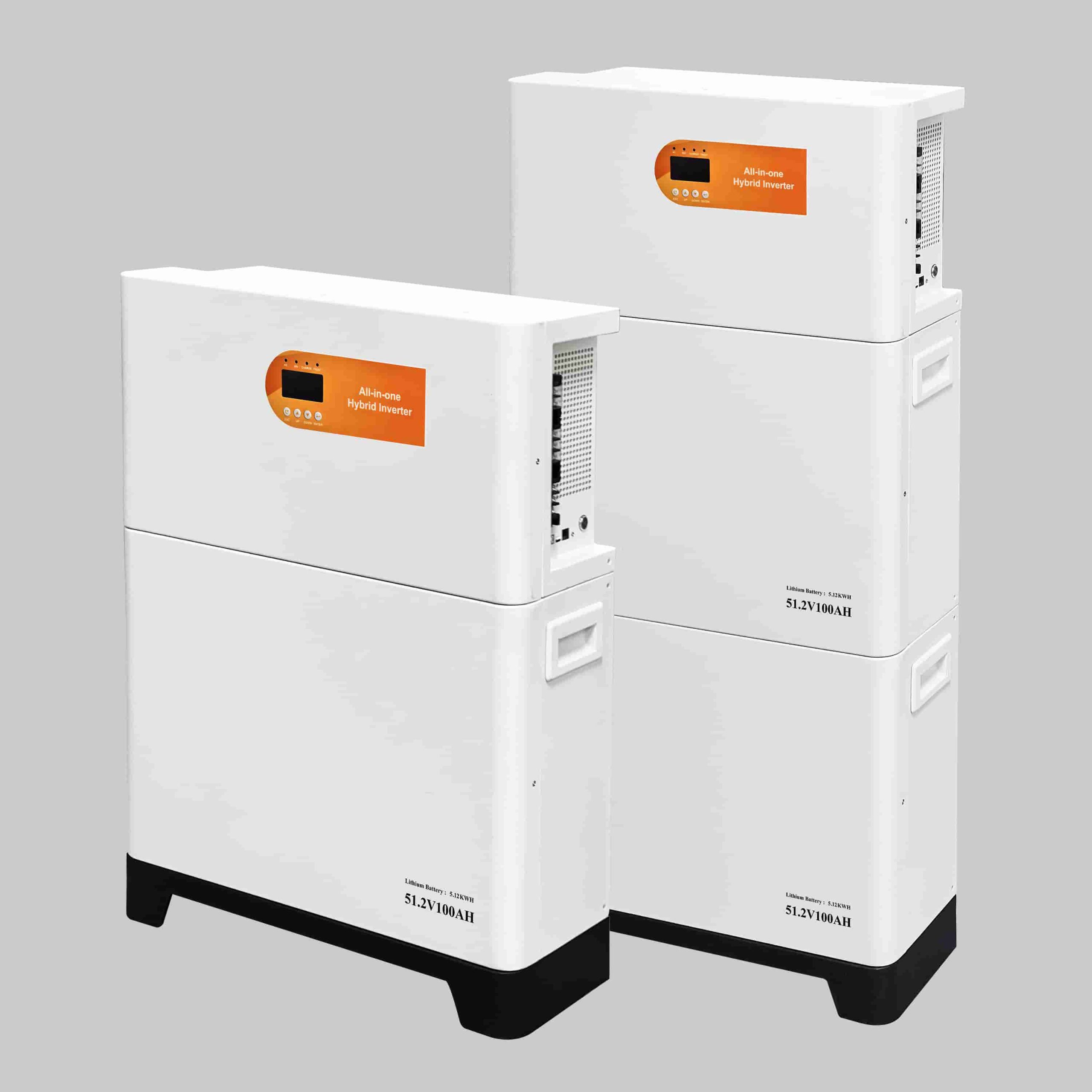

Side view of the all-in-one vertical stacked solar storage system showing both 5kWh and 10kWh capacity models.

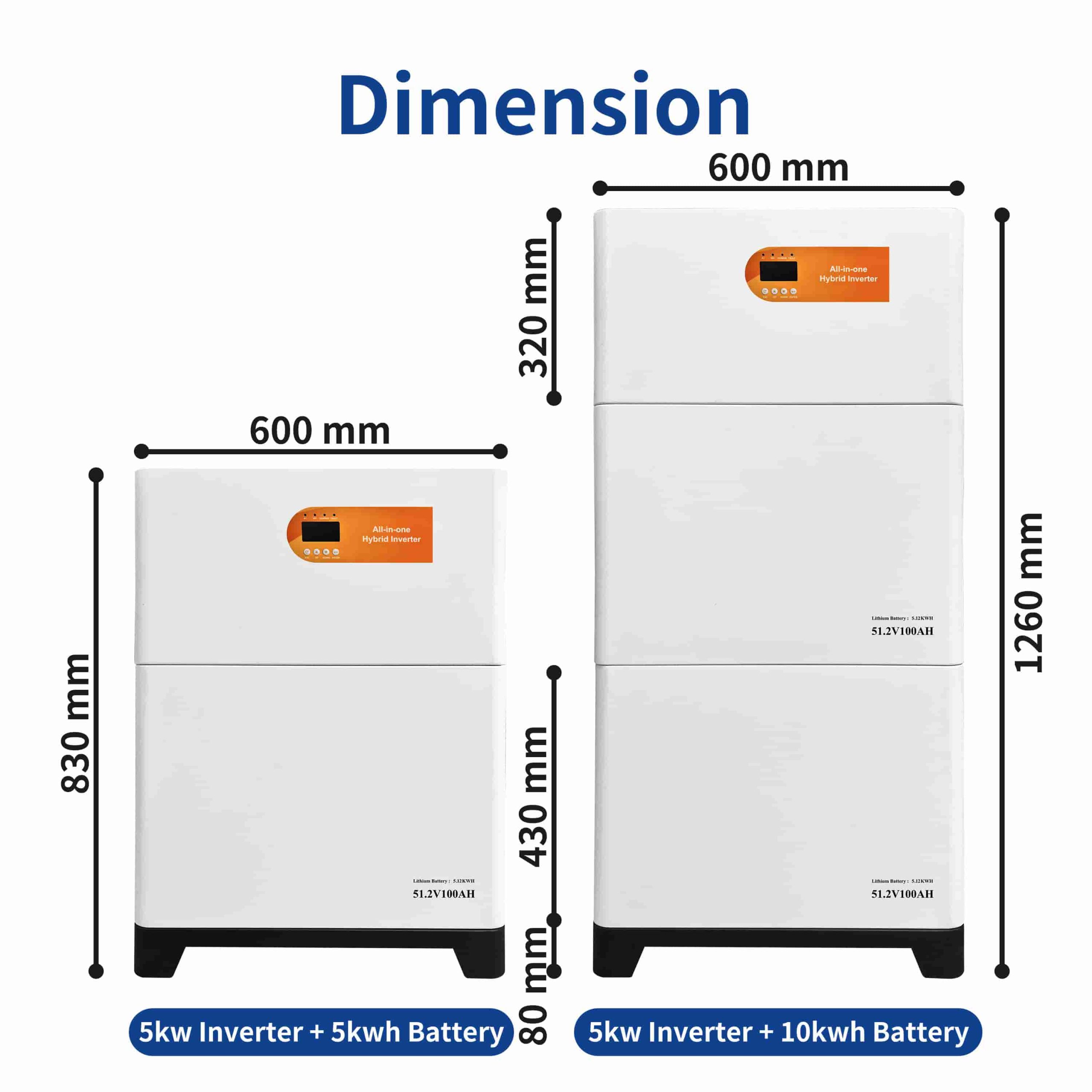

Dimension chart of the vertical stacked solar storage system, displaying the height and width of the 5kW inverter combined with 5kWh and 10kWh battery bases.

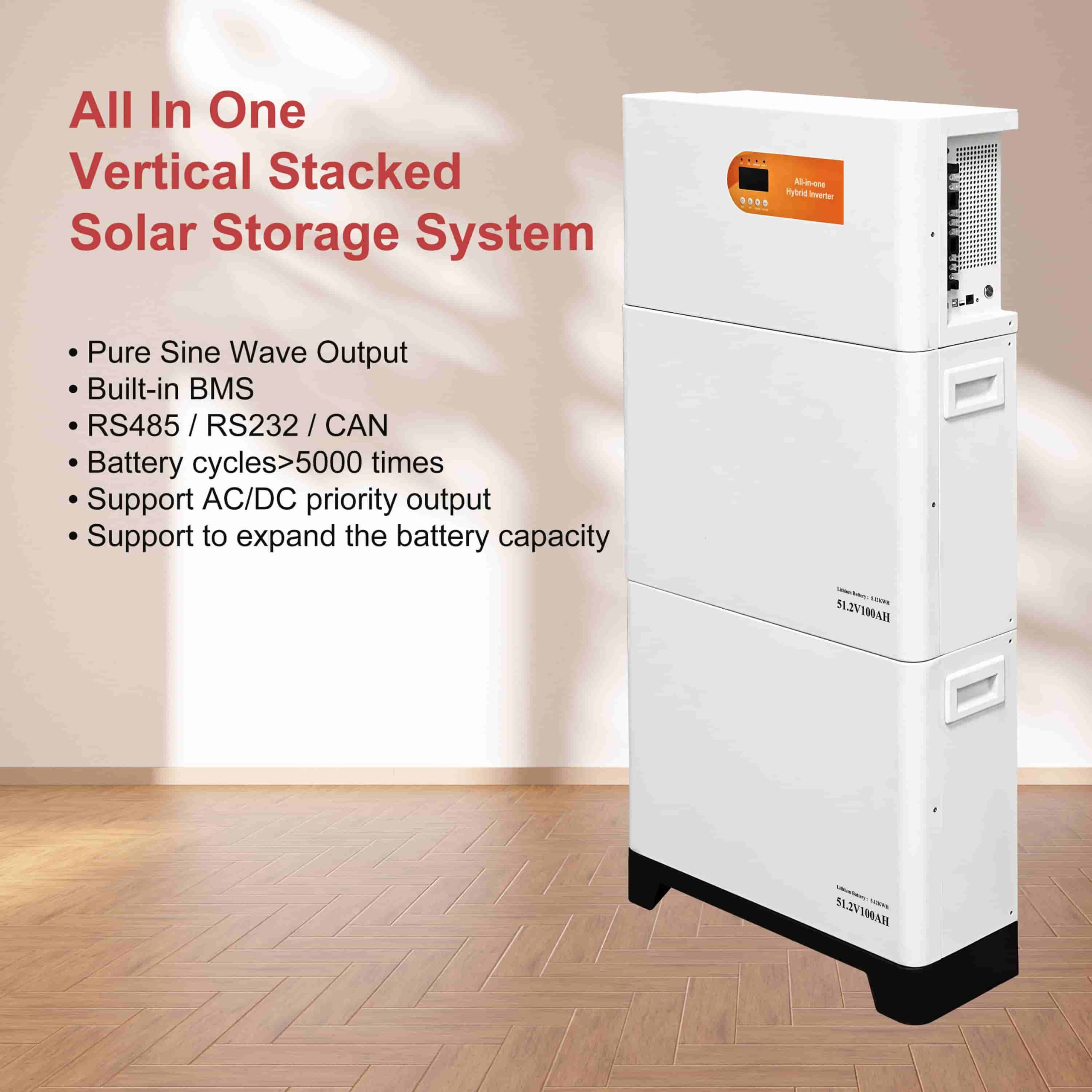

Interior lifestyle shot of the all-in-one vertical stacked solar storage system listing key features like pure sine wave output, built-in BMS, and expandable battery capacity.

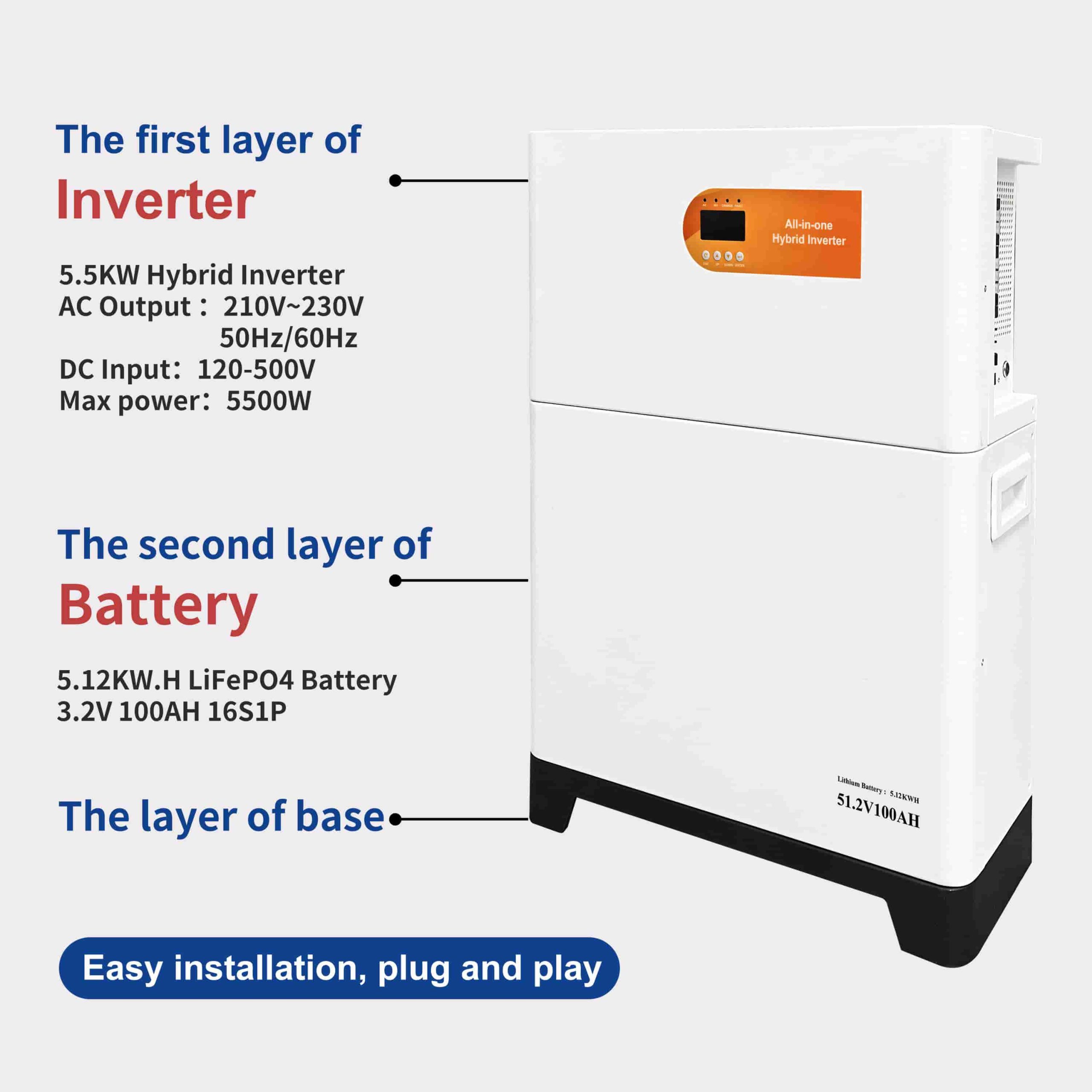

Breakdown of the vertical stacked solar storage system layers, indicating the first layer 5.5KW inverter, second layer 5.12KWH battery, and base layer with plug and play installation.

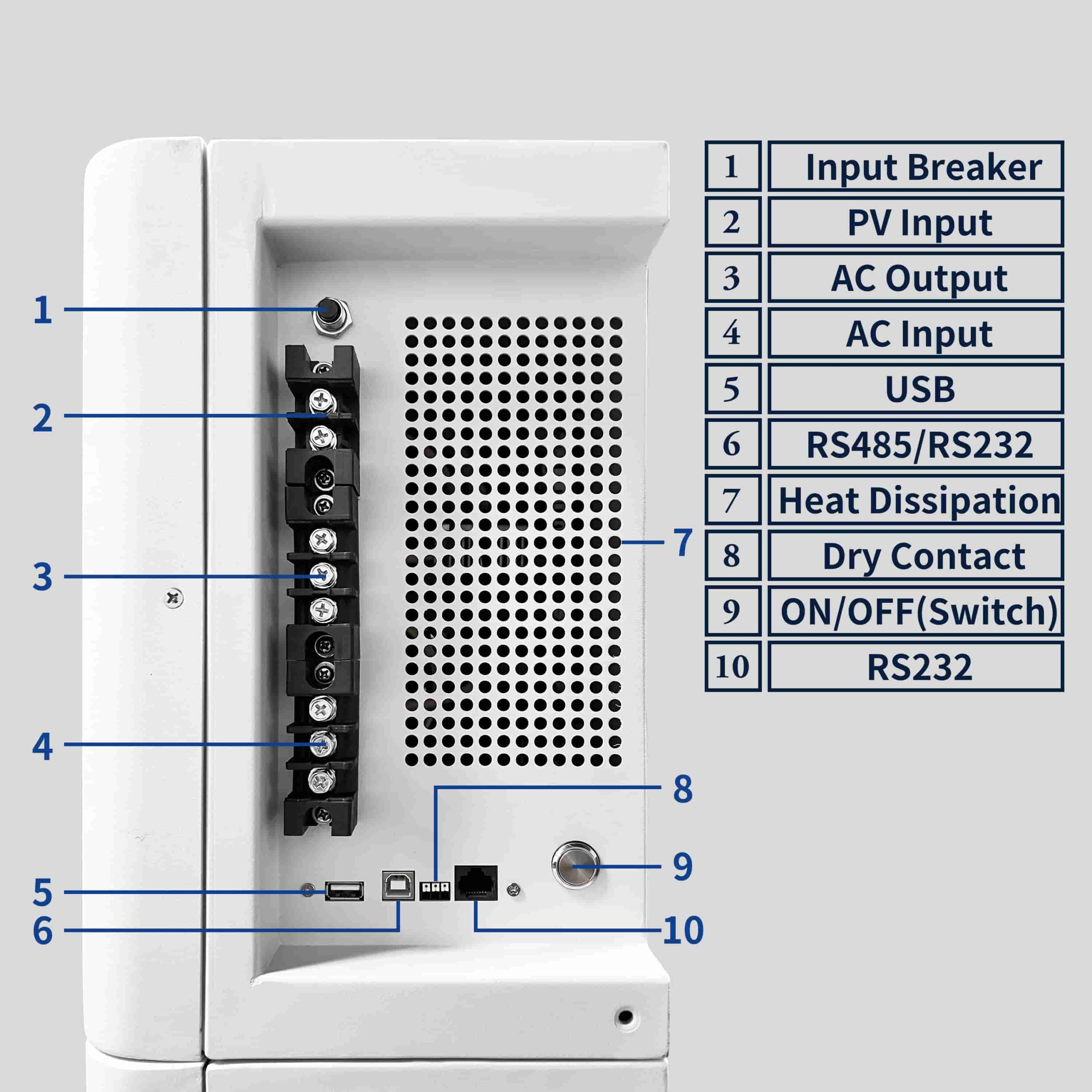

Detailed view of the inverter interfaces on the vertical stacked solar storage system, numbering and identifying the PV input, AC output, RS485/RS232, and heat dissipation vents

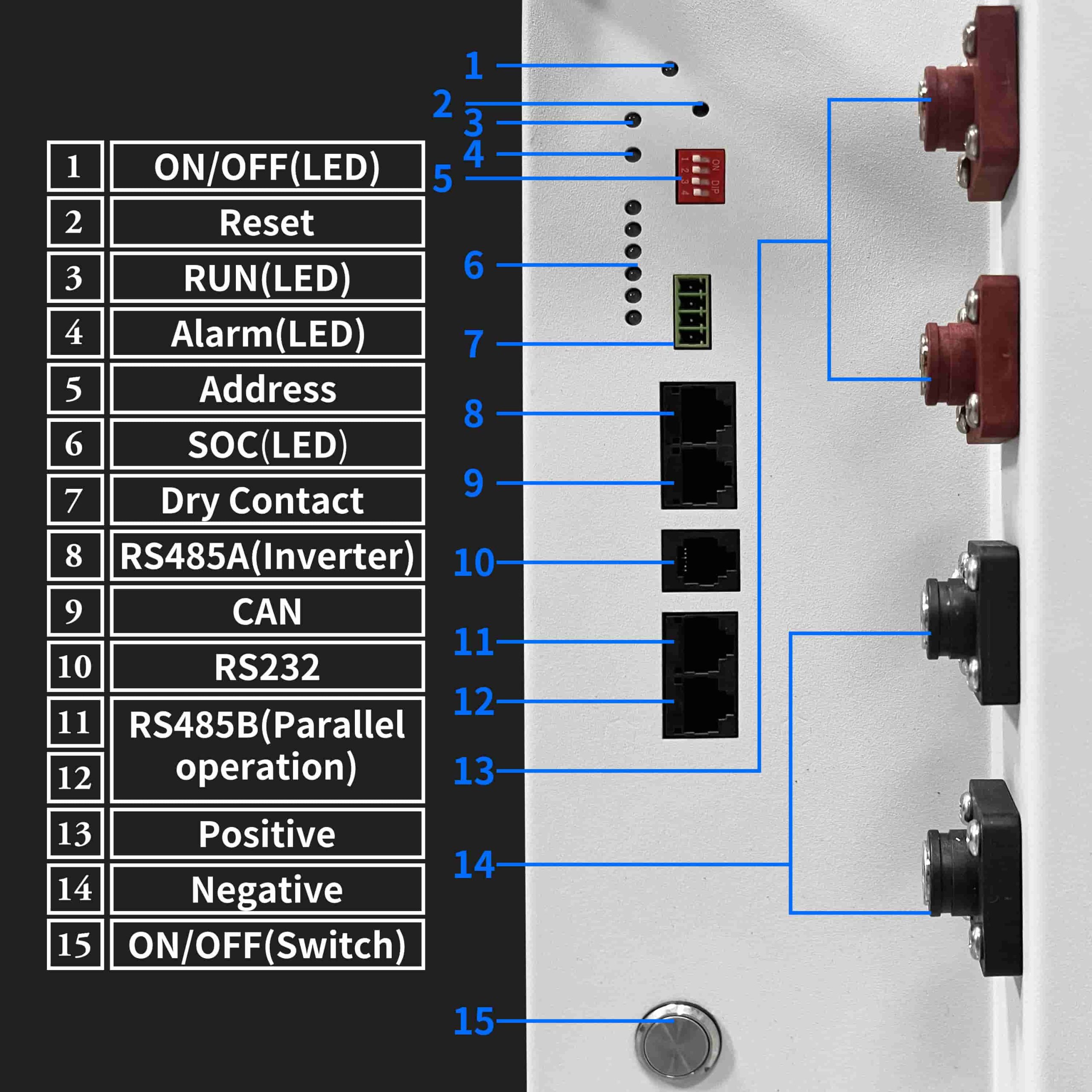

Close-up of the battery module interface panel on the vertical stacked solar storage system, highlighting the LED indicators, RS485, CAN ports, and positive/negative terminals.
Collage showing the application areas for the vertical stacked solar storage system, including an RV outdoors, a communication base station, and a modern office space.

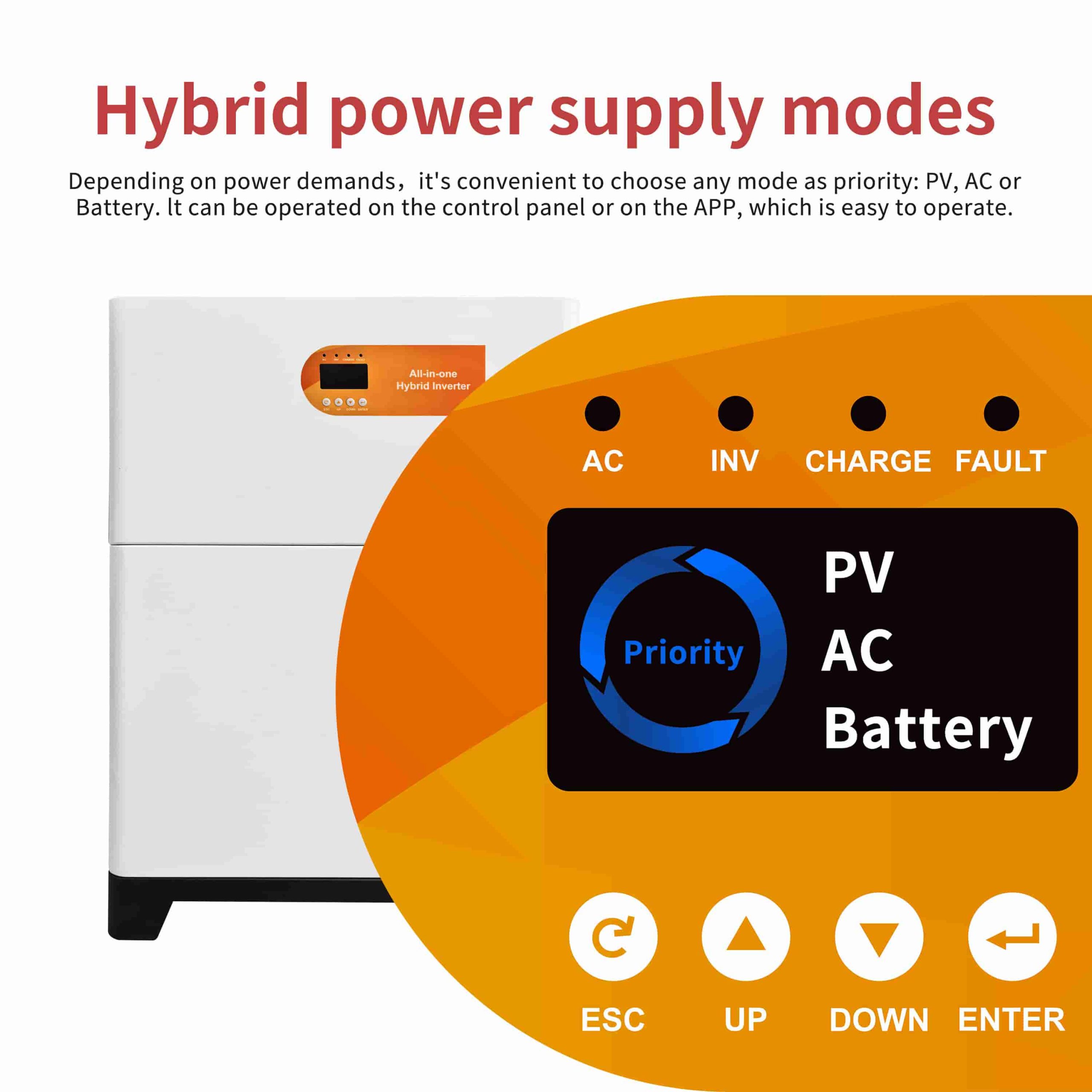

Control panel of the all-in-one vertical stacked solar storage system showing hybrid power supply modes with PV, AC, and Battery priority options.

5kWH-10kWH

All-in-One Vertical Stacked Solar Storage System – 5kW / 10kWh
Powerful, stackable, and smart. This all-in-one solar storage system combines a 5kW inverter with expandable LiFePO4 battery modules (5kWh to 10kWh). Perfect for home backup, off-grid, or priority-based energy management. Features BMS, CAN/RS485 communication, and 6000+ cycle life.

1. Pure Sine Wave & High Compatibility
Delivers clean, stable power suitable for sensitive home electronics like computers, TVs, and medical devices. No interference, no damage.

2. Expandable LiFePO4 Battery Stack
Start with 5.12kWh and expand to 10.24kWh by adding one more battery module. Modular vertical stacking saves floor space while growing with your energy needs.

3. Smart Energy Management (AC/DC Priority)
Choose between AC or DC output priority to maximize solar self-consumption or reduce grid costs. Fully programmable via BMS communication.

4. Robust Battery Performance & Safety
Built with automotive-grade LiFePO4 cells, offering over 6000 cycles at 80% depth of discharge. Integrated BMS protects against temperature, short circuit, and over-current.

5. Complete Communication & Monitoring
Supports RS485, RS232, and CAN protocols for real-time data monitoring. LED traffic light display shows battery status at a glance.

INQUIRE NOW
Feature Vertical 5kW.H Vertical 10kW.H
Storage Capacity 5.12 kWh 10.24 kWh
Battery Modules 1 × 100Ah LiFePO4 2 × 100Ah LiFePO4
Net Weight 68.6 kg 120.4 kg
Gross Weight 83.6 kg 147.4 kg
Inverter Power 5 kW 5 kW
Cycle Life ≥6000 cycles ≥6000 cycles
Max Charge / Discharge Current 100A 100A
Communication RS485, CAN, RS232 Same
IP Rating IP21 IP21
Warranty Inverter: 2 yrs, Battery: 5 yrs Same
Ideal For Small homes, daily backup Larger homes, longer backup

Use Cases
Home Backup Power
Keep lights, fridge, WiFi, and medical devices running during grid outages.

Solar Self-Consumption
Store excess solar energy during the day and use it at night with AC/DC priority.

Off-Grid Cabin or Workshop
Perfect for locations without stable grid access. Stackable design saves space.

Energy Cost Control
Set AC priority to use grid power only when needed. Reduce peak-time electricity bills.

Expandable Home Energy Storage
Start small, grow later. Add a second battery module without replacing the inverter.
