If we live in an area with frequent power outages, or if we have devices in our home that require continuous power, we might consider purchasing home power backup solutions（Best Home Power Solutions: Portable Power Stations, Solar Storage & Non-Solar Home Backup）. Lithium battery backup has become a popular option in recent years. It’s an energy storage system primarily used to provide stable power during power outages. It stores electrical energy from the grid or renewable energy sources and automatically supplies power to electrical devices when the main grid fails.
This article will provide a detailed explanation of what a lithium battery backup is, how it works, and the types of batteries used in modern home energy storage systems.
1. What Is a Lithium Battery Backup?
A Lithium battery backup for home is a storage system built around lithium batteries that can automatically take over power supply when the grid goes down. It is called a lithium battery system because lithium ions move between the positive and negative electrodes during charging and discharging. Compared with traditional lead-acid backup systems, lithium batteries offer higher energy density—meaning they store more power in the same volume—while being lighter in weight, having a much longer cycle life, and requiring very little maintenance.
In recent years, as the cost of lithium batteries continues to fall, they are no longer used only in industrial or telecommunications applications. They are now widely adopted in homes and outdoor scenarios, where they have quickly become a standout choice.
2. How a Lithium Battery Backup Works During a Power Outage
Under normal conditions, household devices are powered by the grid’s AC supply, and the battery pack is charged from it. However, when a power failure or interruption occurs, the system’s high-speed transfer circuit automatically switches to battery power within milliseconds to ensure uninterrupted device operation. Once the grid power is restored, the system resumes supplying electricity to your devices while recharging the battery pack.
If the backup system supports solar input, then during a blackout—as long as there is sunlight—the solar panel battery backup can continue replenishing the battery, extending the overall runtime.

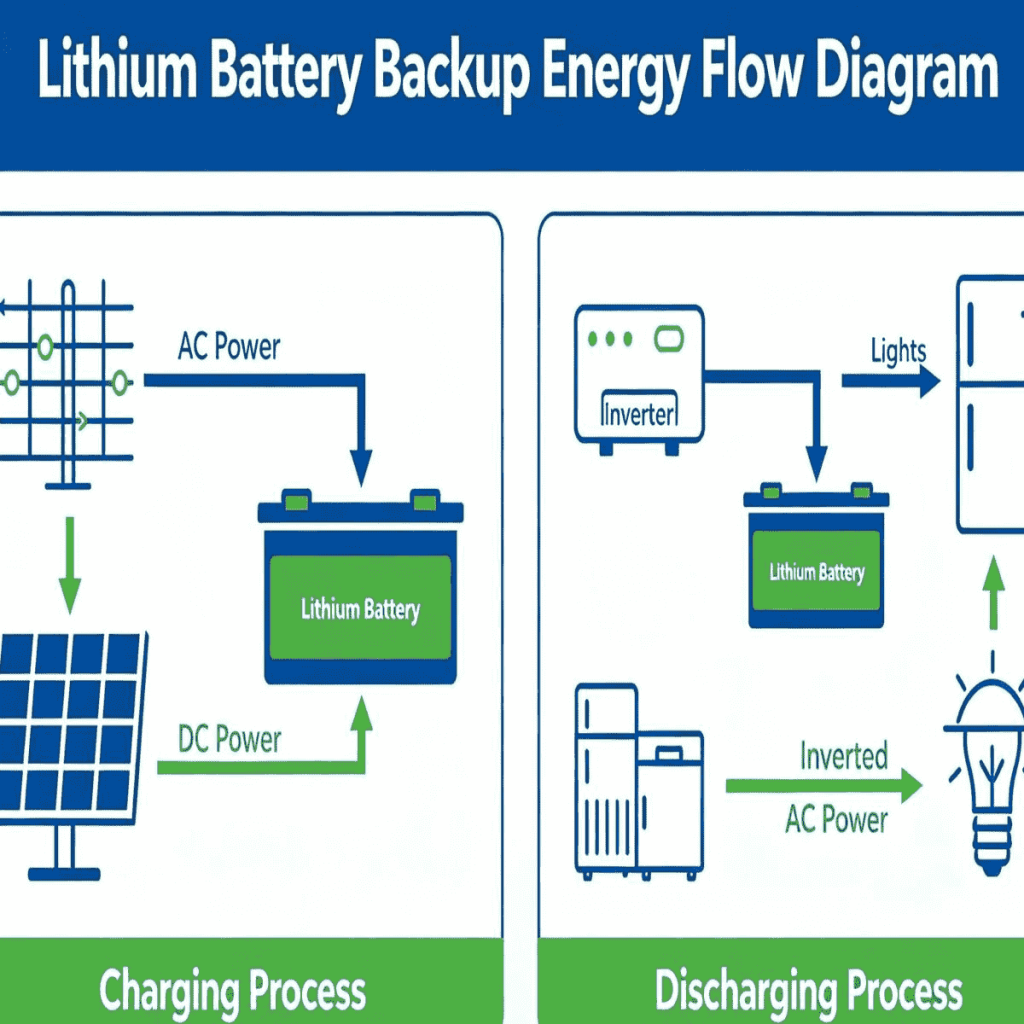

3. How Energy Flows in a Lithium Battery Backup System
The flow of electricity inside a lithium battery generally follows these paths:
Charging stage:
AC power → charger → DC power → lithium battery storage.
In other words, a home battery backup without solar draws AC electricity directly from the grid. Excess power is then stored in the battery in the form of DC electricity.
Discharging stage:
Lithium battery outputs DC → inverter → AC → household devices.
This means the energy flows from the lithium battery to the inverter, which converts DC into AC, and then the AC power is delivered to your appliances.
Solar recharging:
Solar panel generates DC → MPPT controller → lithium battery.
Most Best Lithium battery backup for home products on the market support solar panel input. According to the U.S. Energy Information Administration , when a semiconductor material absorbs enough sunlight (solar energy), electrons are released from the atoms of the material, which is how solar panels convert solar energy into electrical energy. Then the MPPT controller adjusts the voltage to the level required by the battery, and finally the energy is transferred into the battery for storage.
4. Core Components of a Lithium Battery Backup System
A complete lithium battery backup system is more than just the battery itself — it’s a set of components working together, each with its own job. A best solar battery backup system for home usually includes:
Battery Pack:
This is where the energy is stored. It’s built from multiple battery cells connected in series to raise voltage and in parallel to increase capacity. The total battery capacity determines how much energy the system can store.
Inverter:
The battery stores DC power, but your home appliances and the grid use AC. When you’re using the stored energy, the inverter converts DC to AC. It also determines the system’s maximum output power.
Battery Management System (BMS):
Think of this as the control center. It constantly monitors the voltage, temperature, and current of each cell string. If it detects overcharge, over-discharge, overheating, or a short circuit, it immediately cuts off the circuit. This is what keeps the battery safe and running smoothly.
Charger:
During charging, it converts AC from the grid into the proper voltage and current the battery needs. Its job is to safely refill the battery with energy.
Enclosure & Interfaces:
These don’t convert electricity, but they decide how convenient the system is to use. The AC input port is for charging from the grid. The AC output ports power household appliances like fridges and TVs. DC output ports are for routers, phones, and laptops. The display allows you to see the battery’s status. And the enclosure itself provides physical protection for all the components inside.
5. Types of Lithium Battery Chemistry Used in Home Systems

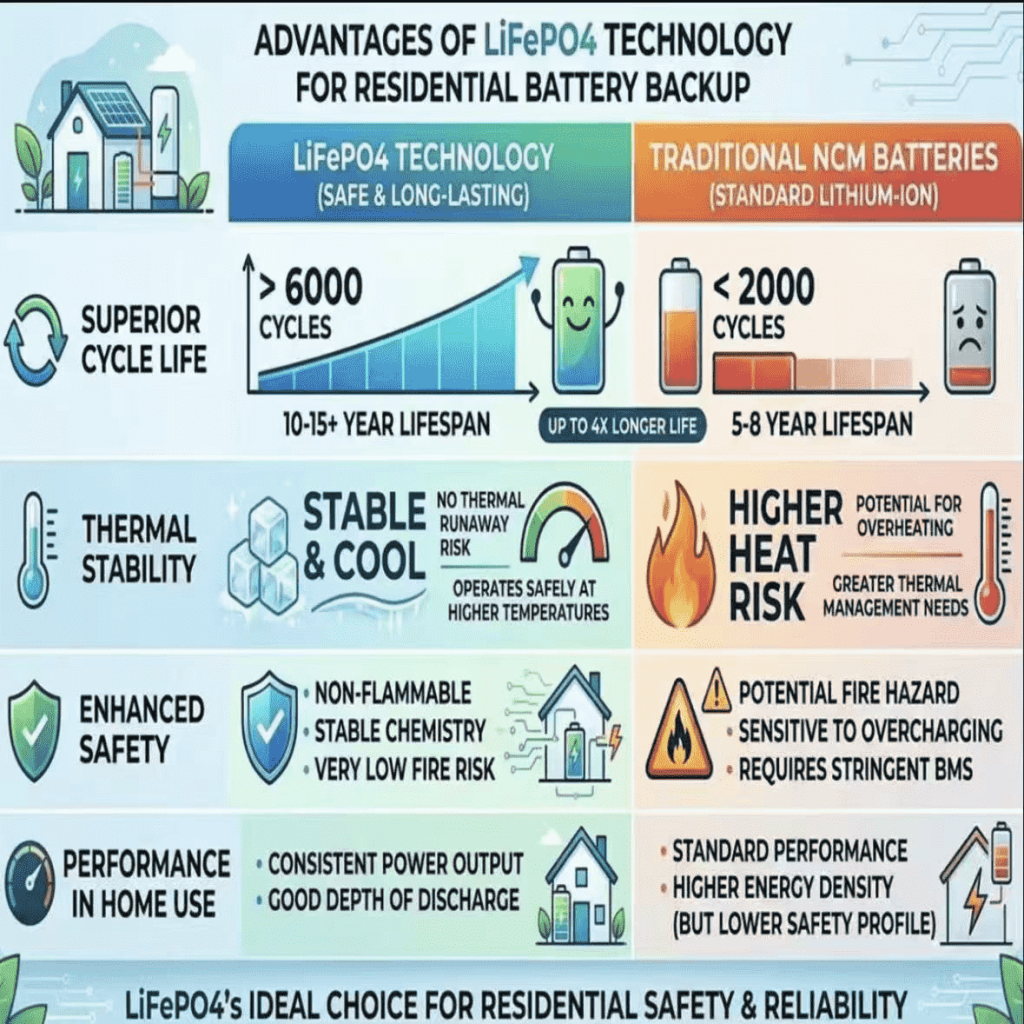

We already know that lithium batteries are a broad category, and different cathode materials lead to different types of lithium batteries. In home battery backup systems, there are currently two mainstream types of lithium batteries: ternary lithium (NCM/NCA) and lithium iron phosphate (LiFePO₄).
Ternary lithium batteries have higher energy density, meaning they can store more electricity in the same volume. As a result, battery packs can be made smaller and lighter. However, their cycle life, thermal stability, and cost-effectiveness are not as strong as those of lithium iron phosphate batteries.
Lithium iron phosphate batteries have a much longer cycle life, typically reaching around 2,000–6,000 cycles before noticeable capacity degradation—about 3–6 times that of ternary lithium batteries. They also offer higher safety, use more environmentally friendly cathode materials, and have lower costs.

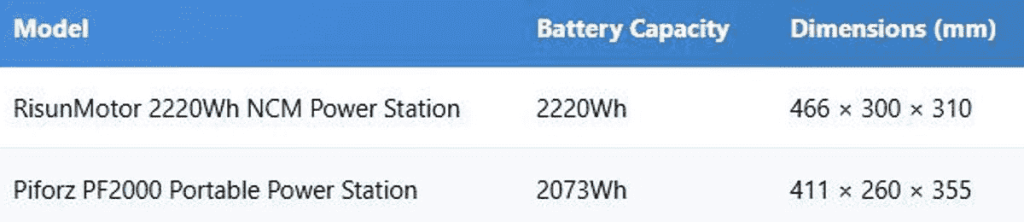

We’ll take the RisunMotor 2220Wh NCM Power Station and the Piforz PF2000 Portable Power Station as examples.
Therefore, we can see that, for the same battery capacity, lithium iron phosphate batteries no longer have an advantage in size compared to ternary lithium batteries.
Therefore, in recent years, lithium iron phosphate has become the preferred choice for home energy storage, portable power stations, and UPS systems due to its superior safety and lifespan. For example, all products from piforz use LiFePO₄ batteries throughout their lineup.
6.What is the major disadvantage of a Li-ion battery?
Like any technology, lithium batteries also have their limitations.
- In terms of cost, although lithium battery prices have dropped significantly in recent years, the initial purchase cost is still about 2–4 times higher than traditional lead-acid batteries at the same capacity. However, lithium batteries offer far more charge cycles, meaning a higher upfront investment but a much longer service life.
- In low-temperature environments, the internal chemical reactions of lithium batteries slow down significantly. Especially below 0°C, the usable capacity may drop to around 80% of its room-temperature level, and charging may even become unavailable.
- Regarding battery aging, lithium batteries naturally degrade over time even when not in use. Their maximum capacity gradually decreases, and high temperatures can accelerate this process. Therefore, lithium batteries are not recommended for storage in extremely hot environments.
For home backup power and outdoor camping scenarios, these drawbacks have relatively little impact in real-world use. Meanwhile, the advantages—such as long lifespan, high safety, and maintenance-free operation—are experienced every day in practical applications.
7. Practical Use Cases for Home Battery Backup

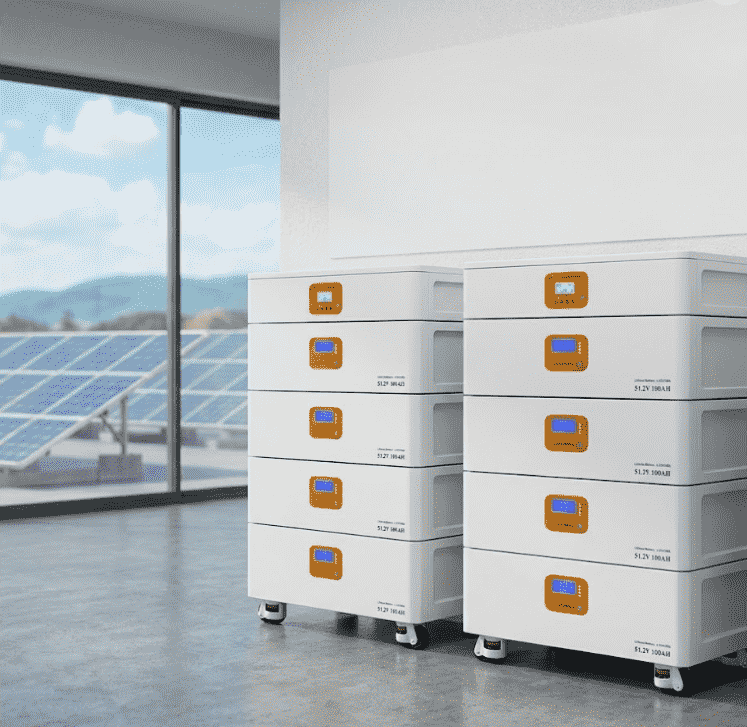

Last August, our entire neighborhood experienced a power outage, but our home remained operational thanks to the Piforz backup battery system I installed. I have a PF10kW + 45kWh system. Before the package arrived, I was worried about installation, but when I opened it, my anxiety vanished. Installation was incredibly easy; you simply stack the battery and inverter from bottom to top.
The power came back on the next day, and the backup power had sustained our daily lives throughout the outage. We kept the air conditioner and refrigerator running, and even cooked food on the induction cooker. The battery still had some charge left when the power came back on. I’m prone to anxiety, and I was worried about insufficient power and the risk of fire. Customer service assured me that if I felt it wasn’t enough, I could purchase additional batteries to expand the capacity. They use lithium iron phosphate batteries, which have good thermal stability and won’t cause fires under normal use.
I think battery backup for home power outage is definitely at the top of my 2025 must-have list.
7. FAQ
Q: How long will a 100Ah lithium battery run a 12V fridge?
A: A 100Ah lithium battery (1200Wh) can safely run a 12V car refrigerator for about 1.5 days.
First, we need to clarify that battery capacity is measured in Wh, while Ah (ampere-hour) represents electric charge. So we use the following formula to calculate the energy capacity of the storage system: voltage (V) × capacity (Ah) = energy (Wh). If your system is 12V, then 12V × 100Ah = 1200Wh.
Next, we need to understand the refrigerator’s power consumption. A common 12V car refrigerator (around 40–60L) typically uses about 45–60W while running, but it only operates 30%–50% of the time. If we take 60W as an example, the daily energy consumption is calculated as: power × time = energy usage (Wh). So 60W × 24 hours = 1440Wh. Considering its actual duty cycle of about 40%, the real consumption is approximately 1440 × 0.4 = 576Wh per day.
Finally, we divide the battery capacity by the device’s energy usage to estimate runtime: 1200Wh ÷ 576Wh/day = 2.1 days. However, we also need to account for inverter losses, environmental conditions, and temperature factors, which will reduce the actual runtime.
To get a more accurate estimate, the best method is to test your refrigerator directly or check its rated power and annual energy consumption in the user manual, then calculate based on watt-hours (Wh). You can also refer to another article for detailed calculation methods.
Q: Do I need solar panels to use a solar emergency generator at home?
A: This depends on your personal needs. A home battery backup without solar is sufficient as long as its capacity meets your required runtime, and a solar panel is not necessary. Solar panels are optional, but they are very useful when you need continuous charging during long power outages.
